Features

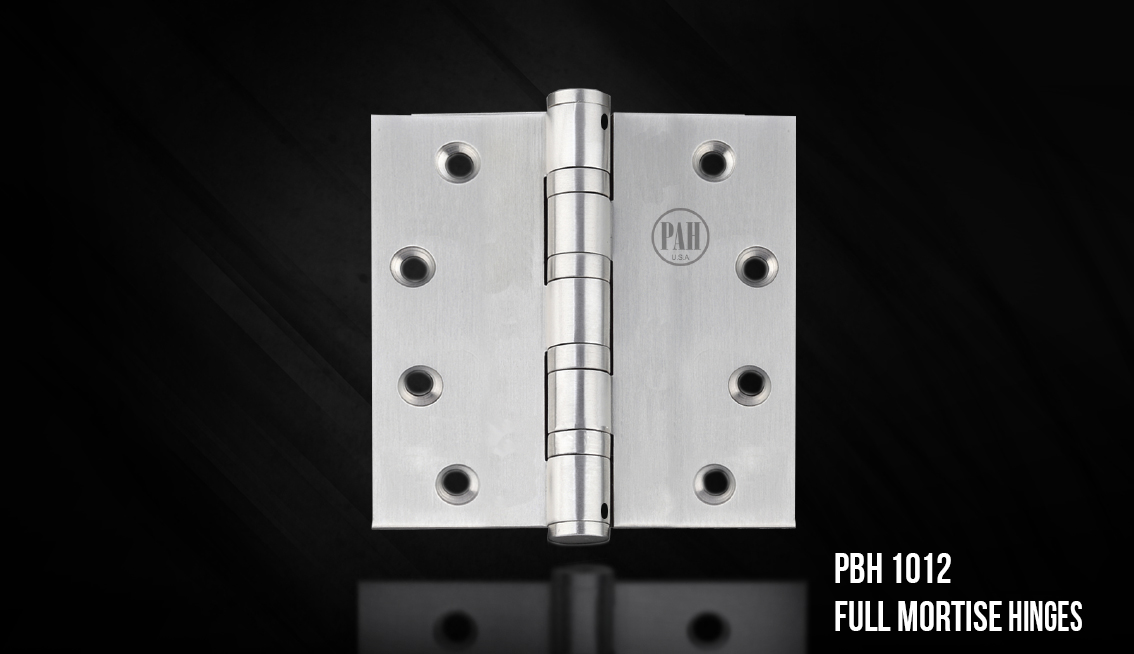

- Full Mortise Heavy Weight Hinges
- 5 Knuckle Full Mortise 4 Ball Bearing , Square and Radius Corner Heavy weight Template Hinges
- PH 1012
- Area Of Application - For Doors upto 3Hrs Fire Rated in average traffic areas
- Door Details - Weight Upto 170lbs Less then 60 Inch Height - 2 Hinges 60-90 Inches High - 3 Hinges Over 90 Inch - 4 Hinges
- Technical data - For Heavy weight doors in high traffic area. Stainless Steel Material (304 Grade, 316 Grade) 4 Ball Bearing Fixed or Removable Pin Square Corner or Radius Corner available.
Other Finishes
- US26D (626) Satin Chrome
- US3 (605) Bright Brass
- US4 (606) Satin Brass
- US5 (609) Antique Chrome
- US15 (619) Satin Nickel
- US10 (612) Satin Bronze
- US10B (613) Oil Rubbed Bronze
- US32 (629) Bright Stainless Steel
- US32D (629) Satin Stainless Steel
Downloads
Download our complete catalogue for Mortise Locks which includes following details
- Mortise Lock Sepcification
- Mortise Lock Dimensions (Both Sectional & Escutcheon.
- Trims & Lever.
- Dead Bolt Details.
- ASCI Functions.
- Order & Preparation
