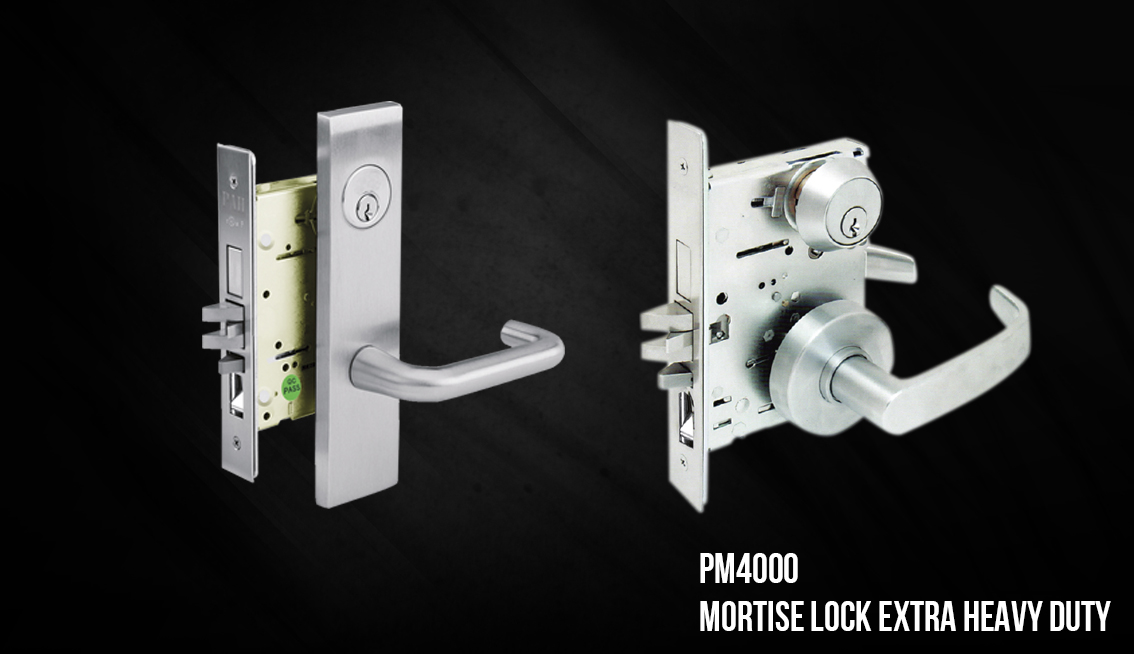

PM4000 Extra Heavy Duty Lockes are built to withstand the rigors of daily use without fail.It is suitable for frequently used doors in public buildings. commercial buildings, hotels and hospitals.
Features
- MORTISE LOCKS EXTRA HEAVY DUTY
- PM4000 SERIES
- Door Thickness - 1 3/8" (35mm) to 21/2"(64mm)
- Backset - 2-3/4" (70mm)
- Front - Stainless Steel or Brass, 2-1/4" x 1-1/8" (57mm x 29mm)
- Strike - Curved Non-handed Strike (4-7/8" x 1-1/4") strike standard
- Handing - Reversible without opening case
- Latchbolt - 3/4" (19mm) Throw Stainless steel, Included Anti-Friction Latch
- Dead Bolt- 1"(25mm)Throw Stainless steel
- Lock Dimension- 4" X 6"(101mm X 152mm) Housing Stainless steel
- Door Prepreation- Conforms to ANSI A 115.
- Lock Switch- Rocker switchlock or unlock hub
- warranty- Lifetime warranty
CERTIFICATION
- ANSI/BMHA certified A156.13 Series PM 4000 Grade 1 UL Listed for all functions up to 3 hours
FINISHES
- US26D (626) Bright Chrome
- US3 (605) Bright Brass [PVD]
- US4 (606) Satin Brass [PVD]
- US5 (609) Antique Chrome
- US15 (619) Satin Nickel
- US10 (612) Satin Bronze
- US10B (613) Oil Rubbed Bronze
- US32 (629) Bright Stainless Steel
- US32D (630) Satin Stainless Steel
Downloads
Download our complete catalogue for Mortise Locks which includes following details
- Mortise Lock Sepcification
- Mortise Lock Dimensions (Both Sectional & Escutcheon.
- Trims & Lever.
- Dead Bolt Details.
- ASCI Functions.
- Order & Preparation
