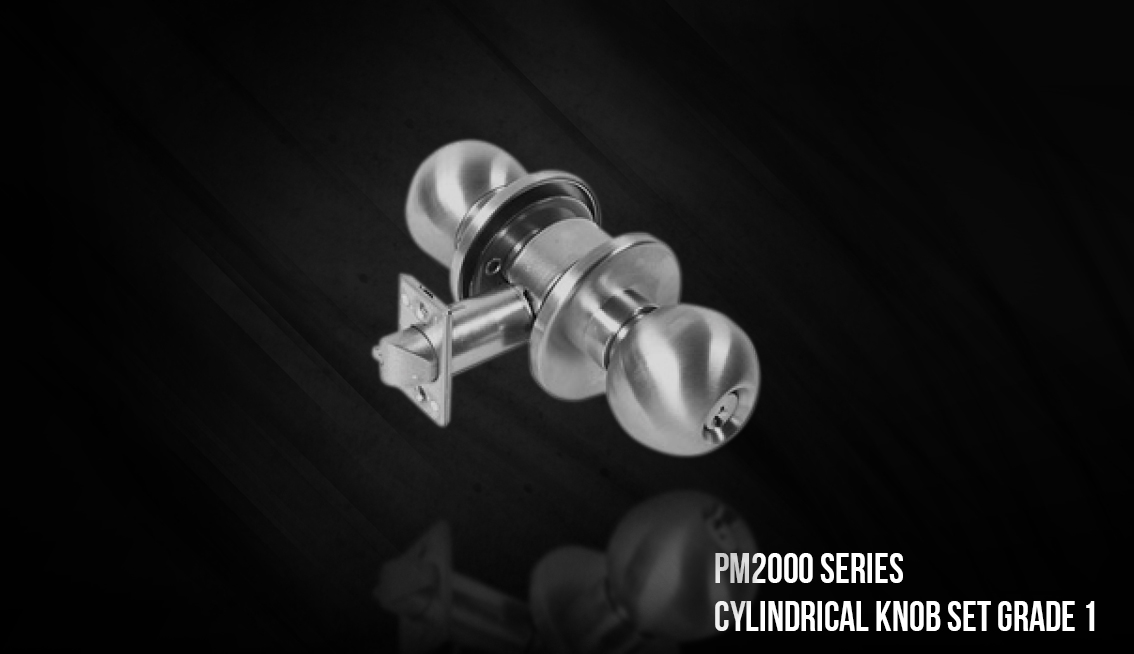

Knobs include steel reinforcement. Heat treated heavy gauge cold rolled steel spindles add strength and secrity Internal steel mechanism is corrosion treated The threaded rose assembly is adjustable for door thickness. Designed for extra heavy duty commercial, industrial and institutional applications No exposed mounting screws Non-handed Conventional cylinder
Features
- Knobs include steel reinforcement. Heat treated heavy gauge cold rolled steel spindles add strength and secrity Internal steel mechanism is corrosion treated The threaded rose assembly is adjustable for door thickness. Designed for extra heavy duty commercial, industrial and institutional applications No exposed mounting screws Non-handed Conventional cylinder
- For Doors - 1-3/8" to 2" (35mm to 52mm)
- Backset - 2-3/4" (70mm) standard 2-3/8" (60mm) available
- Front - Stainless Steel or Brass, 2-1/4" x 1-1/8" (57mm x 29mm)
- Strike - ANSI (4-7/8' x 1-1/4") strike standard
- Roses - 2-3/4" (70mm) Diameter Stainless steel or brass base metal
- Handing - Non-handed
- Latchbolt - Stainless steel 17/32" (13.5mm) throw standard. 3/4" (19mm) throw available
- Cylinder - Solid brass 6-pin cylinder Schlage C keyway with two keys per lock standard.
- IC Core - Solid brass 6 or 7-pin core sold separately
- keying - Keyed Different (KD) standard. Available Masterkeyed (MK), Keyed Alike (KA) and vConstruction Masterkeyed (CMK) see Keys and Keying section for additional options
- Finishes - US32D (630) knobs. Other finishes available by special order
CERTIFICATION
- ANSI/BMHA certified A156.2 Series P2000 Grade 1 cUL/UL Listed for all functions up to 3 hours
FINISHES
- US26D (626) Bright Chrome
- US3 (605) Bright Brass [PVD]
- US4 (606) Satin Brass [PVD]
- US5 (609) Antique Chrome
- US15 (619) Satin Nickel
- US10 (612) Satin Bronze
- US10 (612) Satin Bronze
- US32 (629) Bright Stainless Steel
- US32D (630) Satin Stainless Steel
